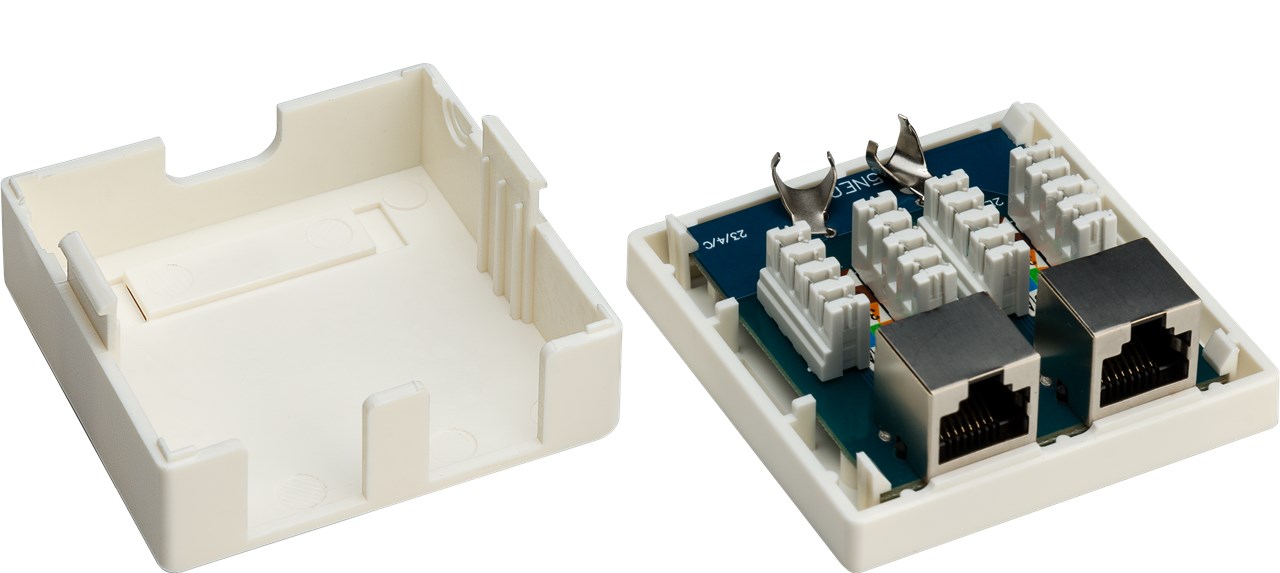

2-port RJ45 surface mount installation box, CAT 6, STP, white
shielded
Product and packaging similar. Subject to modifications and errors.

2-port RJ45 surface mount installation box, CAT 6, STP, white
shielded
Article details
- for use on the wall
- connection options: 2x RJ45 jack to internal tool-free clamp connector
- for cable OD diameter of up to 7.0Â mm
- for cable inner diameter AWG 22-24
- assignment in keeping with TIA-568B
- with label field
Technical specifications
General
Packaging type
Bulk
Consumption Unit
1 pc. in polybag
Color
white
Markings
WEEE, CE
Width
62.2 mm
Height
59.8 mm
depth
26.5 mm
Connections
Connection, type
2x RJ45 female (8P8C)
Connection 2, type
for IDC connectors (toolless)
Device connections
Device Connections
2
Number of outputs
2 ports
Cable
Shielding class
STP
Specification
CAT 6
AWG
24-22
Signal transmission
max. bandwidth
250 MHz
Scope of delivery
Assembly Material
screws
Packing units:
1 / 10 / 100 / 200
Item: 77635
EAN: 4040849776359
