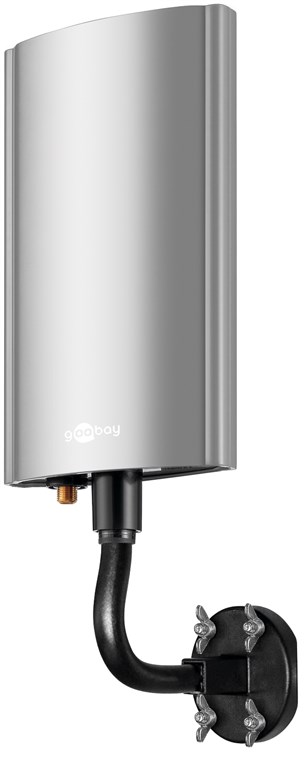

Active DVB-T outdoor antenna, incl. LTE/4G filter
for reception of DVB-T / DVB-T2 HD (DTT) with 20 dB / 16 dB gain
Active DVB-T outdoor antenna, incl. LTE/4G filter
for reception of DVB-T / DVB-T2 HD (DTT) with 20 dB / 16 dB gain
Article details
- for reception of analog and digital TV signals in the VHF (47 MHz - 230 MHz) and UHF (470 MHz - 790 MHz) range
- active DAB, DVB-T, and DVB-T2 antenna especially for HD/SD digital terrestrial TV reception
- integrated amplifier VHF 20 +/-3 dB and UHF 16 +/-4 dB
- omnidirectional and therefore no realignment (horizontal/vertical) necessary for differently polarized transmitters
- GSM/LTE/4G filter to avoid annoying interference by cell phones
- optional installation on wall (flexible rod/pole) or mast
- UV-resistant weatherproof housing
Technical specifications
General
Packaging type
Retail Box
Consumption Unit
1 pc. in cardboard box
antenna Type
outdoor Antenna
Color
grey
Markings
CE, WEEE, 4G/LTE-Filter, Goobay_DVB-T2_HD
Length
190 mm
Width
110 mm
depth
40 mm
Cable
Cable type
coaxial cable
Signal transmission
Directivity pattern
omnidirectional
Frequency Range VHF from
47
Frequency range VHF to
230
Frequency Range UHF from
470
Frequency range UHF to
790
antenna gain VHF
20 dBi max.
Transmission modes
DVB-T, DVB-T2, FM, UKW
antenna gain UHF
16 dBi max.
blocking filter
LTE/4G
Amplifier power-supply
via power supply (Euro plug, 230V)
Signal amplification
yes
Scope of delivery

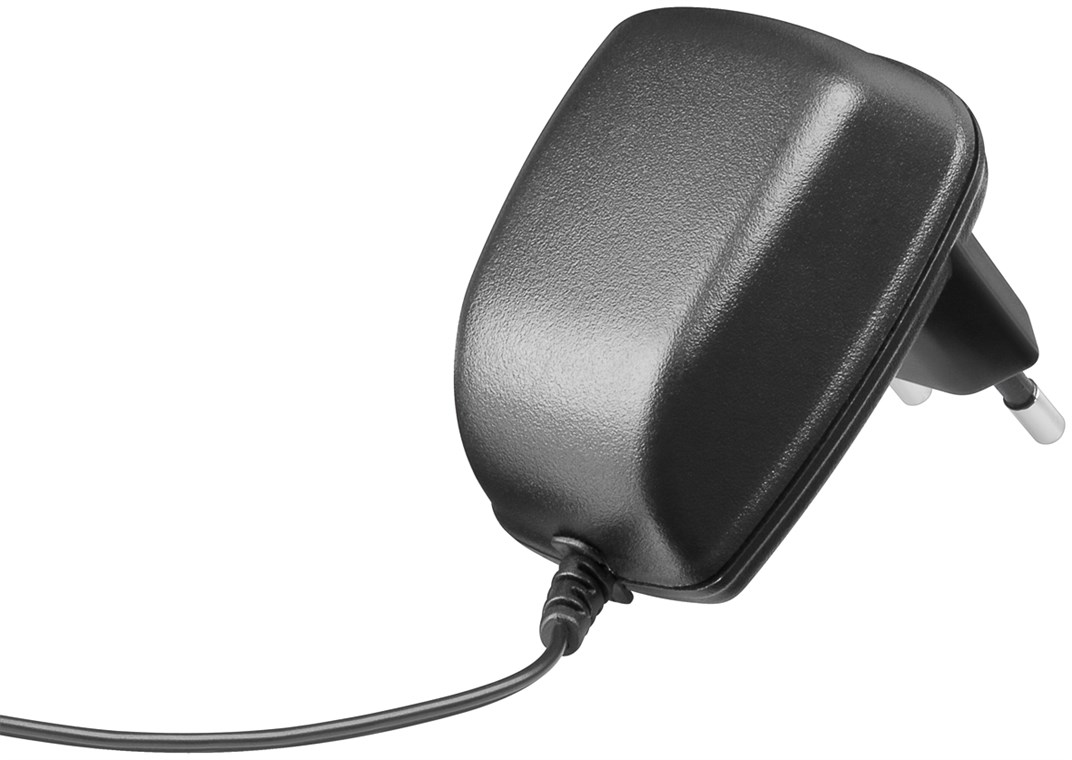

power Supply
100-240 V (Euro)
Language Scope
Operation manual
it, en, fr, de
Downloads
Item: 51501
EAN: 4040849515019
