Clicktronic
Casual

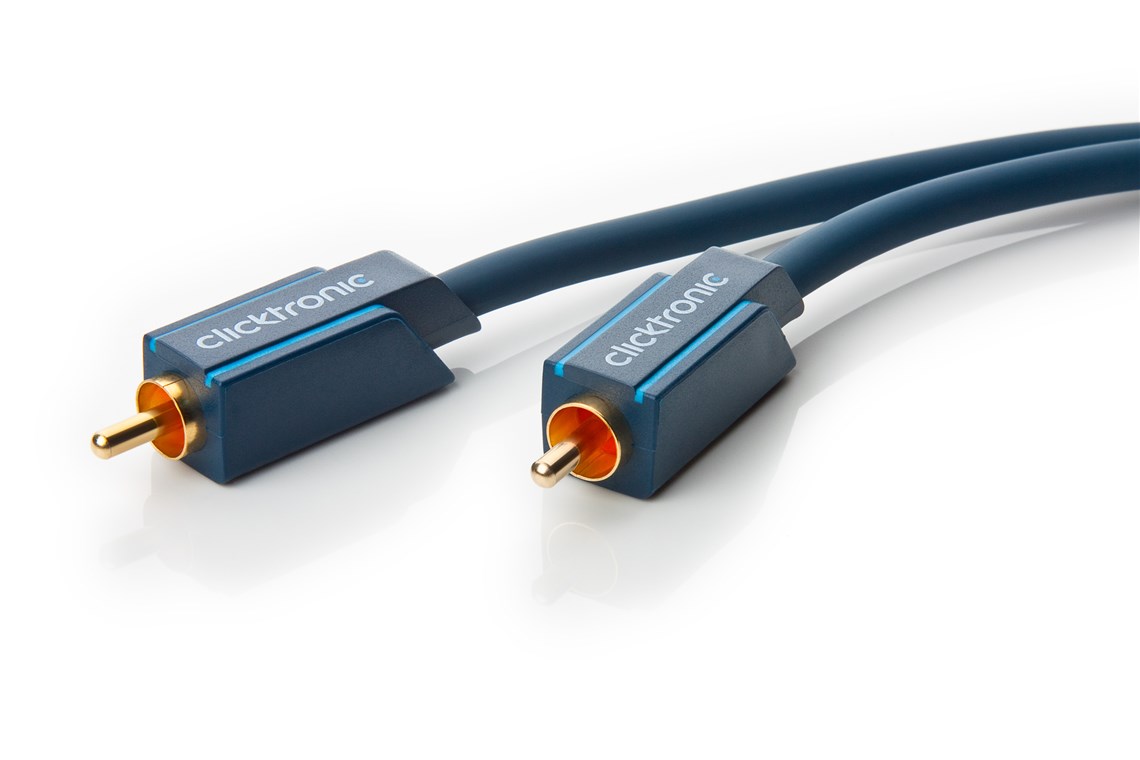

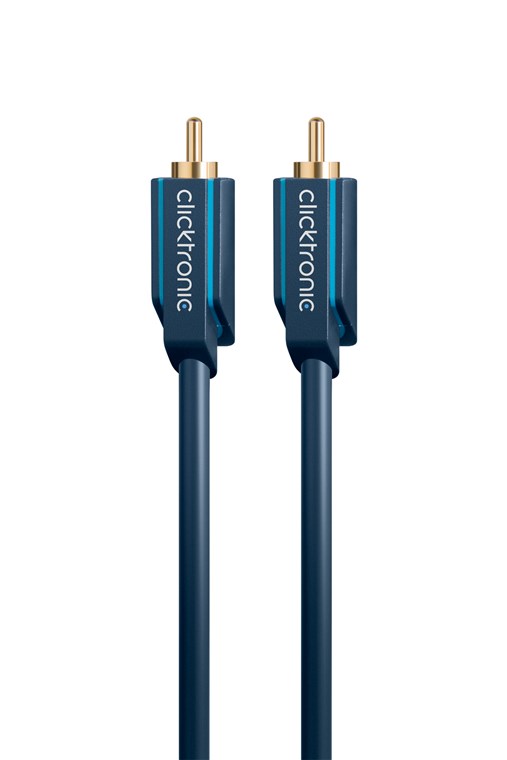

Audio/Video cable
RCA coaxial cable for dynamic audio sound
/5
Product and packaging similar. Subject to modifications and errors.
Clicktronic
Casual
Audio/Video cable
RCA coaxial cable for dynamic audio sound
Article details
When you value good sound, you will need the right audio cable. Because electromagnetic interactions can easily affect sensitive audio signals, multiple shielded cables assist subtle pulses to be undistorted up to the amplifier. Pure materials, and precise workmanship render additional support.
  • 75 Ω defined characteristic impedance
  • pure copper conductor and 2-way shielding for clear signal quality
  • 24 carat gold-plated contacts for minimum transmission resistance
  • Durability and brilliant signal quality due to inner conductors made of 99.9 % oxygen-free copper, which prevent oxidation
  • A permanently jerk-free picture is guaranteed by the double shielding of aluminium foil and copper braiding
  • Long-term usable due to flexible and robust PVC jacket, which can be bent optimally and simplifies the laying of the cable
  • Even after many years, crystal-clear sound quality and rust-free connections due to 24 carat gold-plated plugs
Technical specifications
General
Packaging type
Retail Box
Consumption Unit
1 pc. in cardboard box
Markings
WEEE, CE
Operating temperature from
-10 °C
Operating temperature up to
80 °C
Warranty
10 years
Connections
Connection, shielding
yes
Connection, length
39.8 mm
Latch protection
no
Connection, width
14 mm
Connection, type
RCA male
Connection, height
14 mm
Connection 2, type
RCA male
Connection 2, length
39.8 mm
Connection 2, width
14 mm
Connection 2, height
14 mm
Connection, housing material
PVC
Connection, contact material
gold (24 kt)
Cable
Cable type
round cable
Cable length
0.5 m
Inner conductor material
OFC (99,9% oxygen-free copper)
AWG
23
Number of shieldings
2 x
Type 2, shielding
braid (copper) 96x
Cable sheath diameter (approx.)
6 mm
Inner Conductor number
25 pieces
inner conductor, core diameter
0.12
Kink protection
both sides
Ferrite core
no
Signal transmission
max. bandwidth
10 MHz
Capacity
155 pF
Impedance
75 Ω
Downloads
Product data sheet pdf
£8.99 RRP
Packing units:
1 / 20 / 40
Packaging type
Retail Box
Cable length
0.5 m
1 m
2 m
3 m
5 m
7.5 m
10 m
Item: 70442
EAN: 4040849704420
