Cable splitter (network doubler), CAT Y-adapter

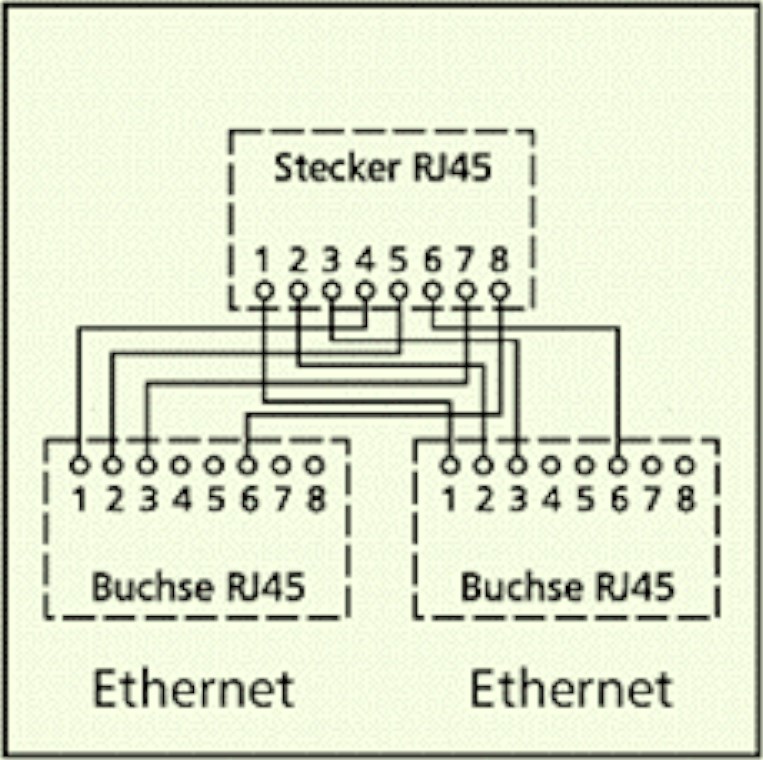

pinout: 2x CAT 5 Ethernet; shielded
Cable splitter (network doubler), CAT Y-adapter
pinout: 2x CAT 5 Ethernet; shielded
Article details
The CAT Y-adapter allowed just over one CAT cable to run two Ethernet cables (Cable-sharing). This is possible, since half of the wires is not used in the cable network. The CAT Y-adapte does not use electricity, but must always be used in pairs - one at each end of the line. The first piece combines the signals on one cable, the second piece separates them back to normal network sockets. However this only works if you use no gigabit LAN and no PoE. There namely more wires are needed and the trick does not work.
- supports 2 Ethernet lines over 1 CAT-cable
- usable as cable splitter for Cat 5 connections
- suitable for 10/100Mbit network connections
- Must always be used in pairs (2 adapter)!
- metalized box
- suitable for PoE+ according IEEE 802.3at
Technical specifications
General
Packaging type
Bulk
Consumption Unit
1 pc. in polybag
Markings
WEEE, CE
Length
150 mm
Cable
Specification
CAT 5
Downloads
Packing units:
1 / 20 / 200
Item: 68908
EAN: 4040849689086
