CAT 6 patchcable 1x 90°angled, U/UTP, white
latch on top, CCA copper mixture
CAT 6 patchcable 1x 90°angled, U/UTP, white
latch on top, CCA copper mixture
Article details
10 Gigabit (10/100/1000/10000 Mbit) network suitable.
- unshielded LAN/network cable to connect network components with 2 x RJ45 connectors

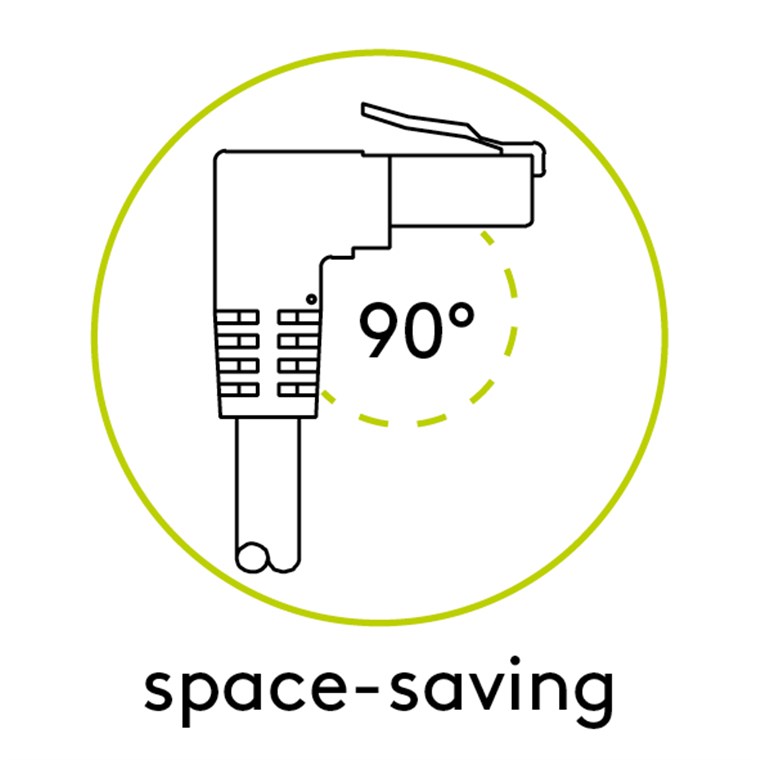

- RJ45 plug straight to RJ45 plug angled, ideal solution for minimal space
- with gold plated PINs
- slimline strain relief
- Latch protection and length indication on straight plug
Technical specifications
General
Packaging type
Bulk
Consumption Unit
1 pc. in polybag
Color
white
Markings
WEEE, CE
Connections
Connection, shielding
no
Latch protection
unilaterally
Connection, type
RJ45 male 90° (8P8C)
Connection 2, type
RJ45 male (8P8C)
Contacting
EIA/TIA-568B
Connection, contact material
gold-plated
Cable
Shielding class
U/UTP
Specification
CAT 6
Cable type
round cable
Cable length
0.25 m
Inner conductor material
CCA (copper-clad aluminium)
Material cable sheath
PVC
AWG
25/7 (stranded)
Cable sheath diameter (approx.)
5.9 mm
Kink protection
both sides
Signal transmission
max. bandwidth
250 MHz
Downloads
Packing units:
1 / 10 / 350
Item: 51520
EAN: 4040849515200
