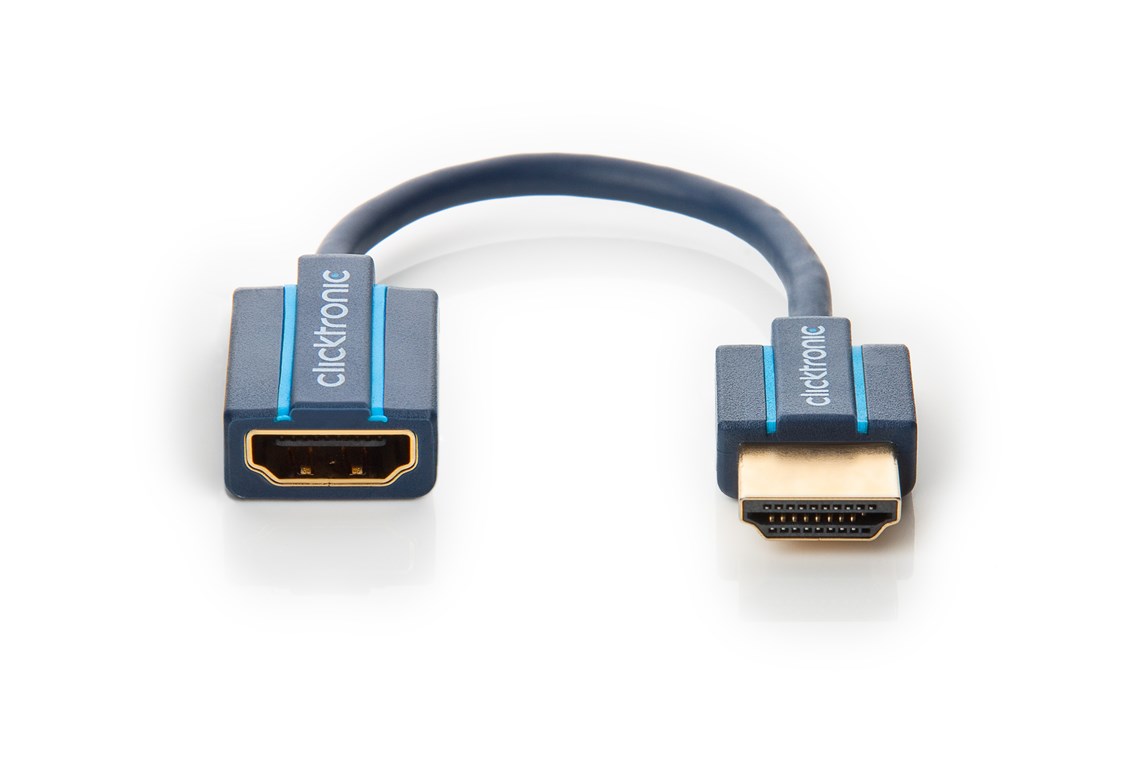

HDMI™ Flexadapter
compact adapter for narrow TV wall clearances and tight corners
Casual
HDMI™ Flexadapter
compact adapter for narrow TV wall clearances and tight corners
Article details
Not enough space between the television and the wall? This often happens, but it’s all right. With the HDMI™ angle adapter, you won’t run out of space so fast in tight corners. You don’t have to worry about any more cable breaks caused by crushed plug connections, either. Instead, with this little add-on solution, you can enjoy digital 3D- and HD-videos and multi-channel audio, clearly, in HD, with stunning brilliance and long-life reliability.
- flexible, rotatable and pliable for minimal space requirements
- pure copper conductor and 2-way shielding for clear signal quality
- High-speed HDMI™ for 3D and Ultra HD up to 4K @ 50/60 Hz (2160 p)
- integrated Ethernet channel saves additional network or audio cables
- 24 carat gold-plated contacts for minimum transmission resistance
- Long-term usable due to flexible and robust PVC jacket, which can be bent optimally and simplifies the laying of the cable
- Even after many years, crystal-clear picture and sound quality and rust-free connections thanks to 24-carat gold-plated connectors
Technical specifications
General
Packaging type
Retail Box
Consumption Unit
1 pc. in cardboard box
Markings
WEEE, CE, HDMI™ High Speed with Ethernet
Operating temperature from
-10 °C
Operating temperature up to
80 °C
Warranty
10 years
Connections
Connection, shielding
yes
Connection, length
24.4 mm
Connection, width
17.5 mm
Connection, type
HDMI™ female (Type A)
Connection, height
8.5 mm
Connection 2, type
HDMI™ male (type A)
Connection 2, length
24.4 mm
Connection 2, width
17.5 mm
Connection 2, height
8.5 mm
Connection, housing material
PVC
Connection, contact material
gold (24 kt)
Cable
Cable type
round cable
Cable length
0.1 m
Inner conductor material
OFC (99,9% oxygen-free copper)
AWG
25
Number of shieldings
2 x
Type 2, shielding
braid (copper) 128x
Cable sheath diameter (approx.)
4 mm
Inner Conductor number
1 pieces
inner conductor, core diameter
0.12
Kink protection
both sides
Signal transmission
max. transmission rate
10.2 Gbit/s
max. bandwidth
340 MHz
Impedance
100 Ω
Downloads
Packing units:
1 / 20 / 60
Item: 70700
EAN: 4040849707001
