LED floodlight, 30 W, Slim Classic, with motion sensor
lighting solution with PIR sensor for building entrances, garages, carports and access paths
LED floodlight, 30 W, Slim Classic, with motion sensor
lighting solution with PIR sensor for building entrances, garages, carports and access paths
Article details
- extremely flat shape and high energy efficiency
- very long service life, thanks to integrated, non-removable LED light source
- characterised by bright, neutral white light with large beam angle of 120°
- IP44 – splashproof (-25–40°C)
- robust aluminium housing protects against weather
- adjustable mounting bracket for wall mounting and approx. 30 cm connection cable with end splices

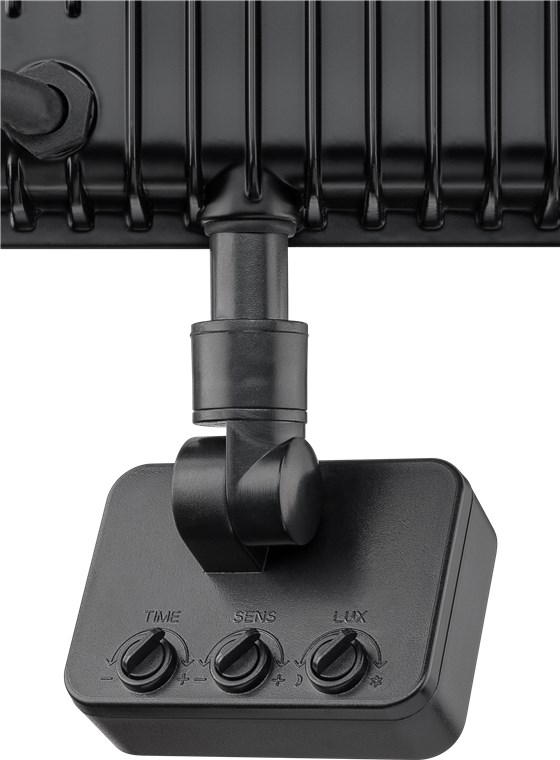

- PIR detection range: max. 8 m at 100° angle, adjustable off-delay (10–300 sec.), light sensitivity (3–2000 lx) and range
Technical specifications
General
Packaging type
Retail Box
Consumption Unit
1 pc. in cardboard box
Appliance Class
I
protection class
IP44
Model designation
Goobay
Color
black
Material
aluminum
Markings
WEEE, CE
Operating temperature from
-25 °C
Operating temperature up to
40 °C
Energy efficiency rating
A 874/2012/EU
General service life
30000 hrs.
Width
170 mm
Number of switching cycles
30000 pcs.
Height
224 mm
depth
28 mm
Weight
590 g
Performance
luminous source
light emitting diode (LED)
operating voltage
230 V (AC)
Illuminate-Type
SMD 2835 LED
Power consumption
30 W
sensor type
passive infrared (PIR)
max. detection range
8 m
max view angle
100 °
Luminous flux
2400 lm
Rated luminous flux
2400 lm
switch-off delay from
10 s
switch-off delay to
300 s
Installation Height up to
3 m
Installation height from
1.8 m
product.attribute.techdat-performance-max-bright-wide
9
weighted energy consumption
31.95 kWh/1.000 h
Luminous color
classic white
color temperature
4000 K
Light yield
80 lm/W
Startup time
0.5 s
startup time to 60% light
0.5 s
color rendering index
80 Ra
corresponds light bulb
174 W
electric power factor
0.9
Dimmability
not dimmable
Device connections
Power frequency
50 Hz
Cable
Cable length
0.15 m
Build
Beam Angle
120 °
Language Scope
packaging
de, en, fr, it, es, nl, da, sv, pl, cs, fi, ro, el, ru, tr
Downloads
Packing units:
1 / 12
Item: 39013
EAN: 4040849390135
