Fixpoint

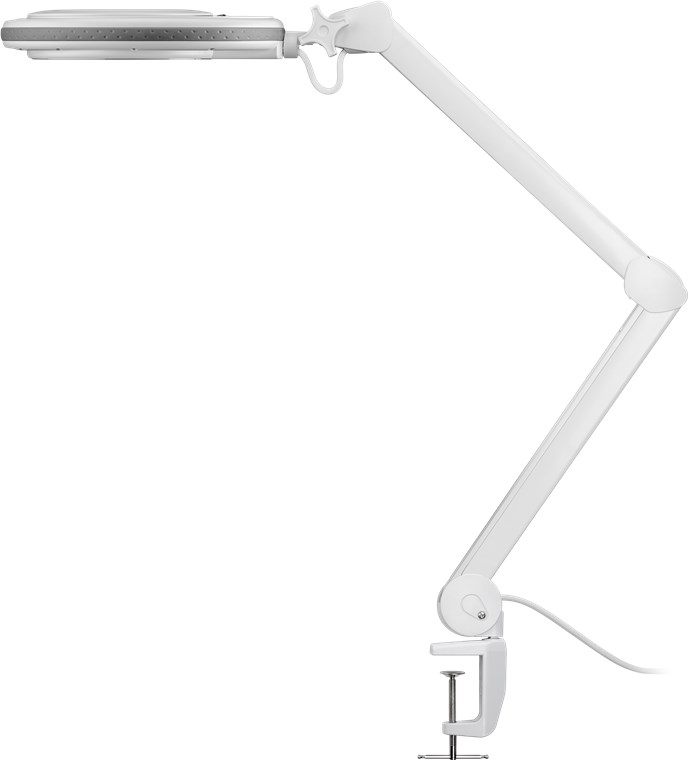

LED magnifying lamp
127 mm crystal glass lens; 1.75x magnification; 3 diopters; 520 lumens
/11
Product and packaging similar. Subject to modifications and errors.
Fixpoint
LED magnifying lamp
127 mm crystal glass lens; 1.75x magnification; 3 diopters; 520 lumens
Article details
  • 127 mm magnifier diameter with harmonious LED ring lighting
  • crystal glass lens (incl. protective cap) with 3 diopters and 1.75x magnification
  • articulated arm with integrated cable guide and 700 mm working radius
  • magnifier head tilts 90° and swivels 360°
  • clamp base for table thicknesses up to 60 mm
Technical specifications
General
Packaging type
Retail Box
Consumption Unit
1 pc. in cardboard box
protection class
IP20
Color
white
Markings
WEEE, CE
Energy efficiency rating
A+ 874/2012/EU
Length
900 mm
General service life
20000 hrs.
Number of switching cycles
10000 pcs.
mercury content
0
Diameter
230 mm
Weight
2640 g
Connections
Connection, type
Shaped male (type C, CEE 7/17)
Performance
luminous source
light emitting diode (LED)
operating voltage
230 V (AC)
Power consumption
7.5 W
Luminous flux
520 lm
Luminous intensity
221 cd
Luminous color
classic white
color temperature
6500 K
Startup time
0.5 s
startup time to 95% light
0.2 s
color rendering index
80 Ra
electric power factor
0.5
Dimmability
not dimmable
Cable
Cable length
1.47 m
Build
Beam Angle
120 °
cover type
lens
Language Scope
Operation manual
en, de, fr, it, es, nl, pl
packaging
en, de, fr, it, es, nl, da, sv, pl, cs, fi, ro, el, ru, tr
Downloads
Instruction Manual pdf
Packing units:
1 / 4
Item: 45268
EAN: 4040849452680
