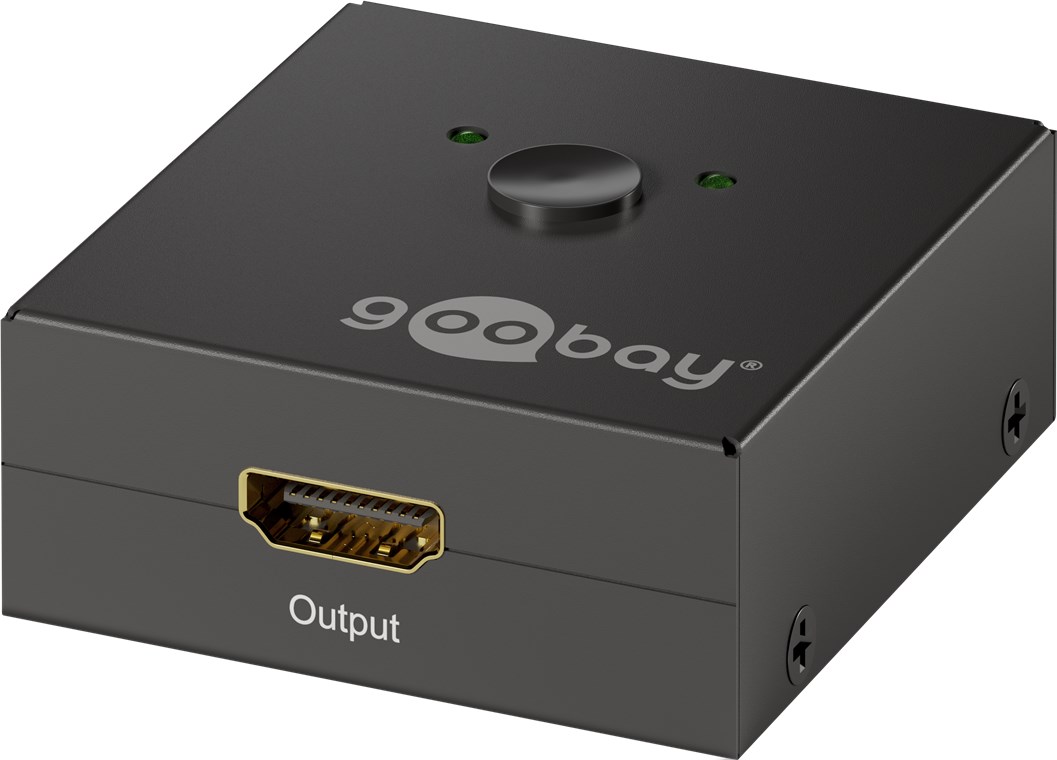

Manual HDMI™ Switch Box
for connecting up to two source devices to one television set, for example
Manual HDMI™ Switch Box
for connecting up to two source devices to one television set, for example
Article details
- supports 3D and HDTV with a resolution of up to 1080p (full HD)
- supports HDTV up to a resolution of 1080p (full HD)
- conforms to HDCP standard
- manual switch on the front of the device
- easy to install and use
- no power supply required
Technical specifications
General
Packaging type
Retail Box
Consumption Unit
1 pc. in cardboard box
max. resolution
Full HD 1080p (60 Hz)
Color
black
Material
metal
Markings
CE, WEEE
Operating temperature from
0 °C
Operating temperature up to
70 °C
Length
49 mm
Width
52.2 mm
Height
20 mm
Weight
66 g
Connections
Connection, type
HDMI™ female (Type A)
Device connections
Input, type

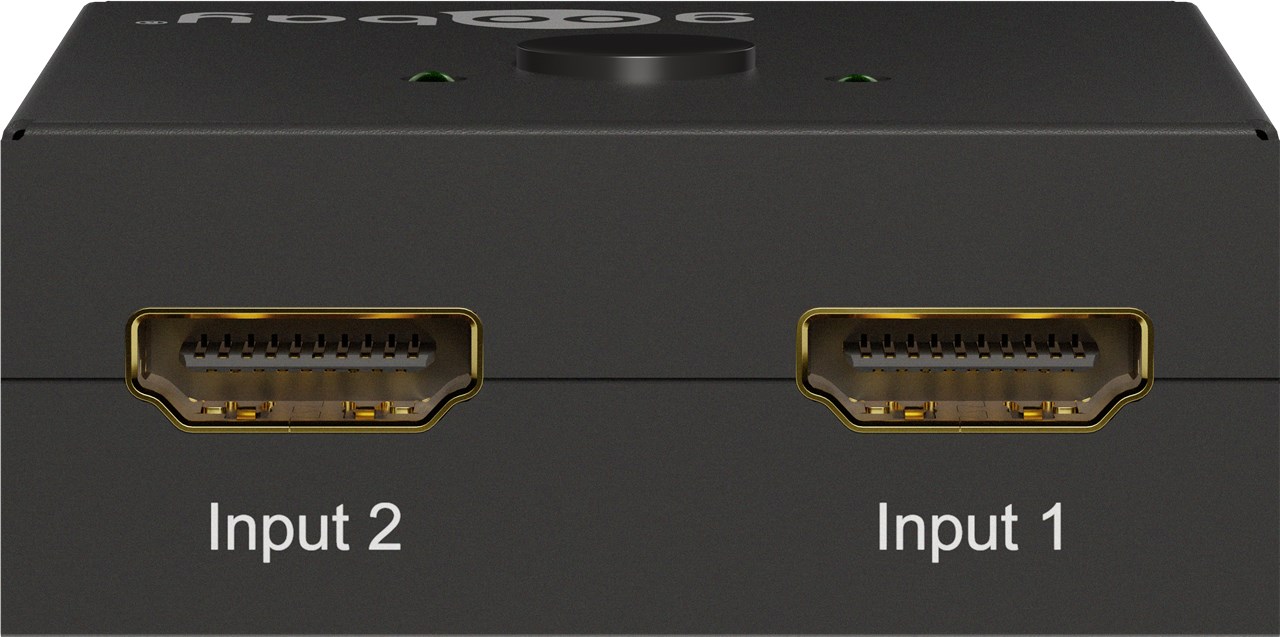

2 HDMI™ female (Type A)
Output, type
HDMI™ female (Type A)
number of inputs
2 pcs.
Number of outputs
1 ports
Signal transmission
supported audio standards
DTS®, DTS-HD HR, DTS-HD MA, Dolby Digital 5.1 (AC-3), 3D, LPCM 2.0, LPCM 5.1, LPCM 7.1
Scope of delivery
Scope of delivery
manual
Downloads
Item: 58980
EAN: 4040849589805
