Series 1.4
Manual HDMI™ Switch Box
for connecting up to three source devices to one television set, for example
Series 1.4
Manual HDMI™ Switch Box
for connecting up to three source devices to one television set, for example
Article details
- supports Full HD (1080p), 4K/30Hz and 3D
- supports HDTV up to a resolution of 1080p (full HD)
- conforms to HDCP standard

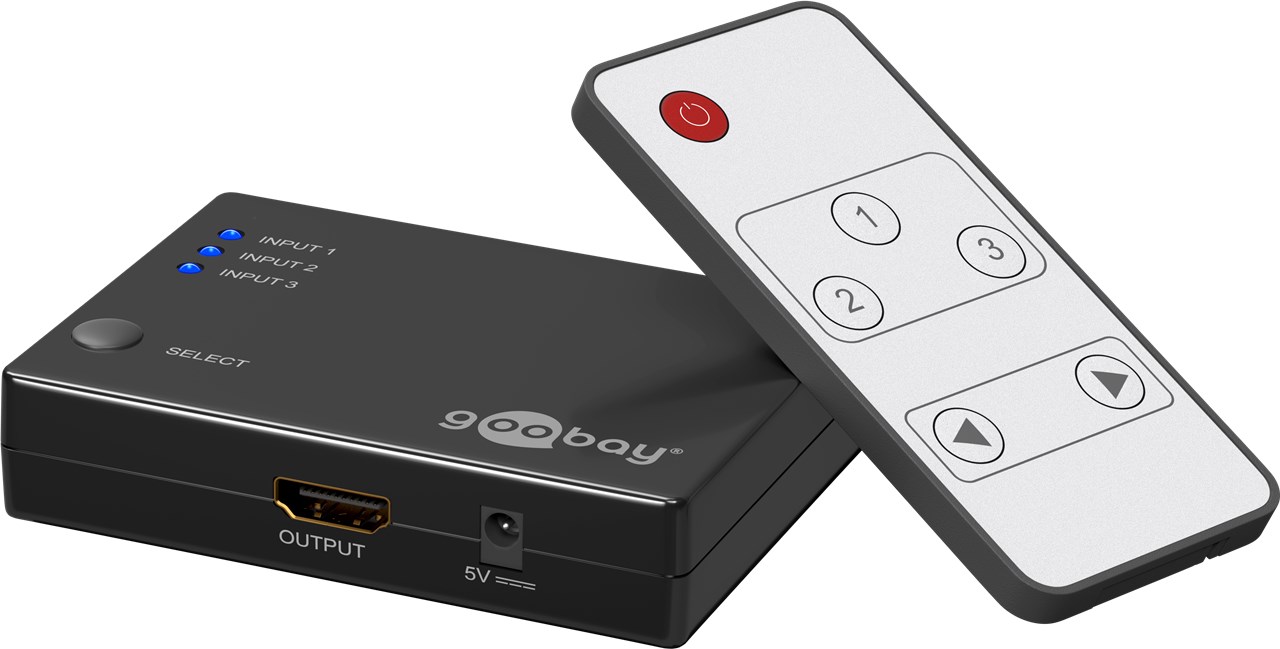

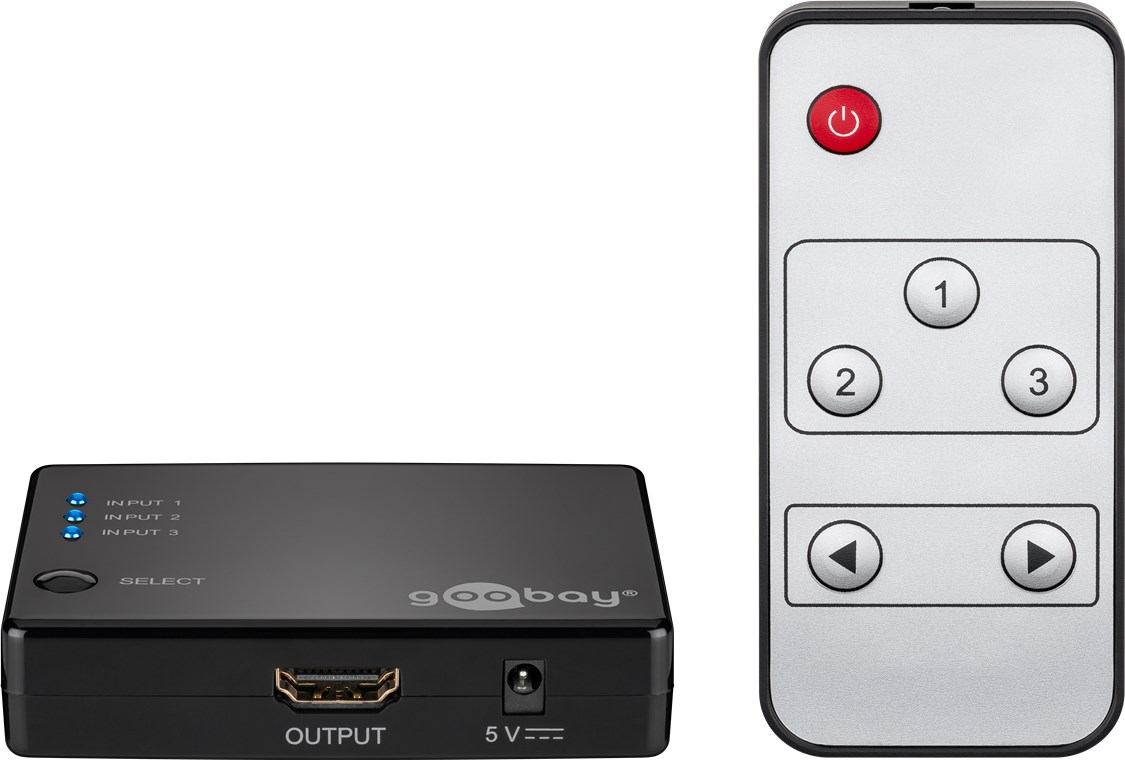

- manual switch on the front of the device
- easy to install and use

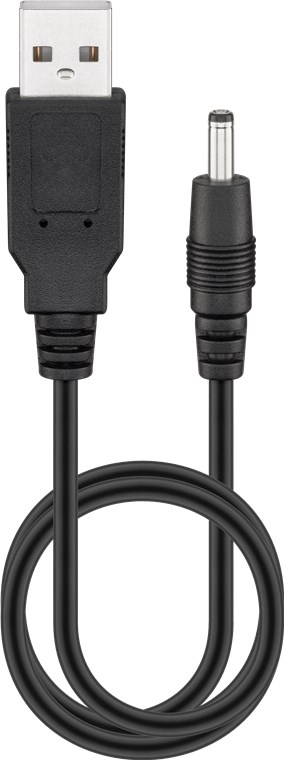

- power can be supplied via USB/DC cable (included) on the TV’s USB port or via USB adapter (5 V, 100 mA; not included; #43748)
Technical specifications
General
Packaging type
Retail Box
Consumption Unit
1 pc. in cardboard box
max. resolution
Full HD 1080p (60 Hz)
Color
black
Material
metal
Markings
CE, WEEE
Operating temperature from
0 °C
Operating temperature up to
70 °C
Length
82 mm
Width
58 mm
Height
18.3 mm
Weight
50 g
Connections
Connection, type
HDMI™ female (Type A)
Device connections

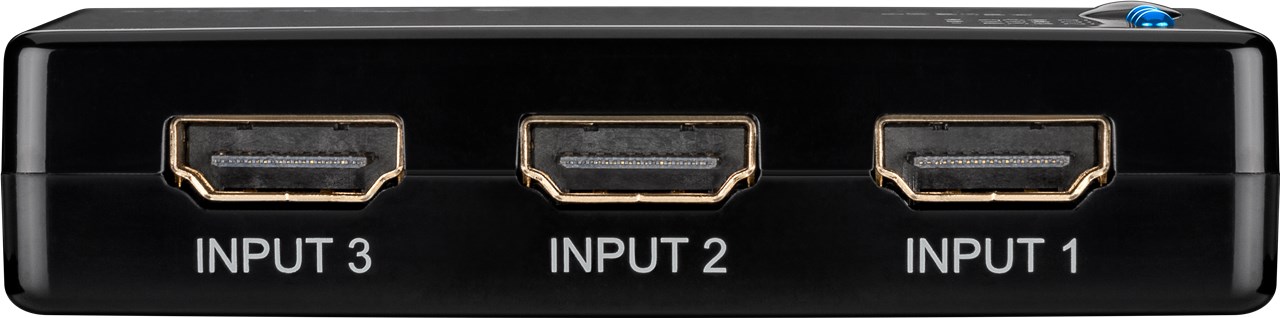

Input, type
3 HDMI™ female (Type A)
Output, type
HDMI™ female (Type A)
number of inputs
3 pcs.
Number of outputs
1 ports
Signal transmission
supported audio standards
3D, Dolby Digital 5.1 (AC-3), DTS®, DTS-HD MA, DTS-HD HR
Scope of delivery
Scope of delivery

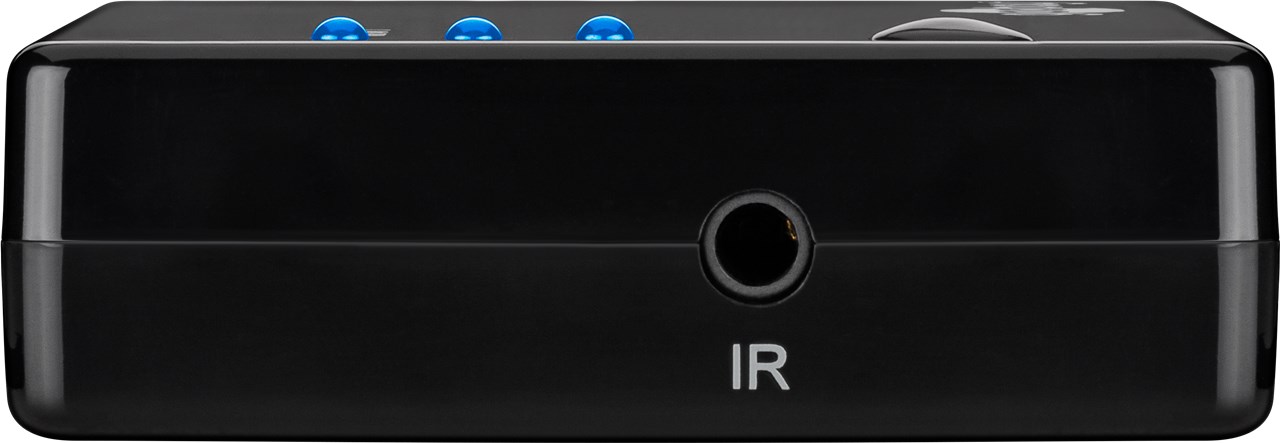

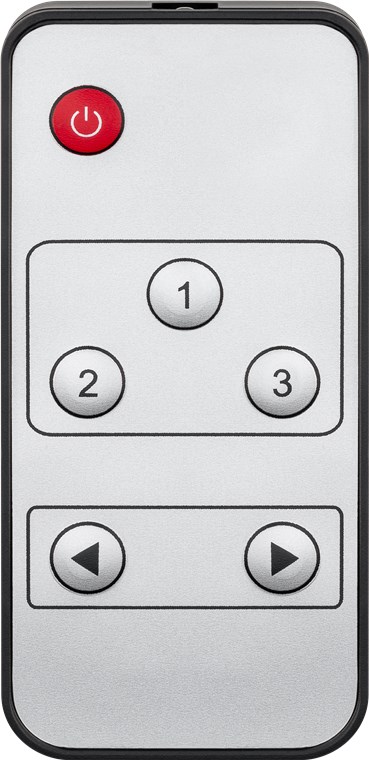

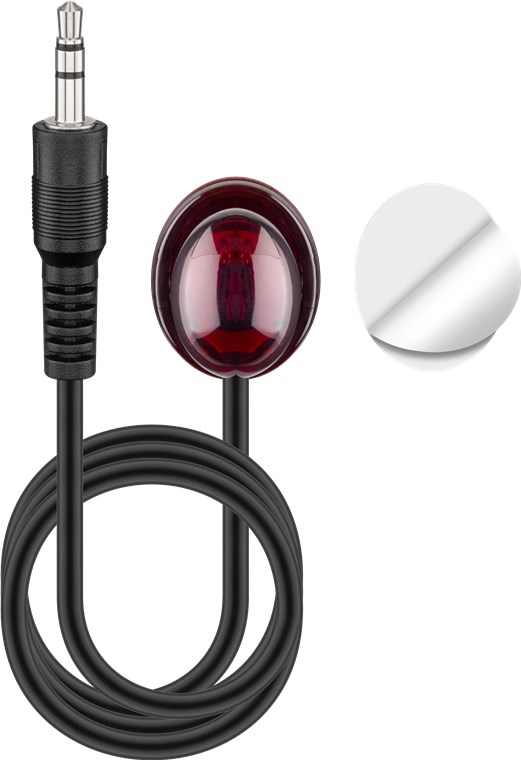

Infrared receiver, manual, remote control, USB to DC cable
Downloads
Item: 58981
EAN: 4040849589812
