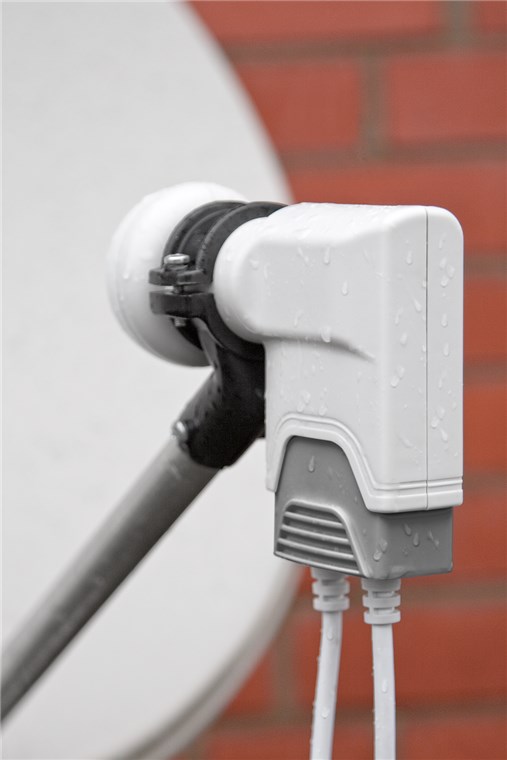

Universal Twin LNB
digital SAT-LNB (DVB-S2) for 2 devices (4K/UHD/HDTV/3D reception)
Universal Twin LNB
digital SAT-LNB (DVB-S2) for 2 devices (4K/UHD/HDTV/3D reception)
Article details
- works for direct connection w/o multiswitch
- completely encapsulated weather protection housing
- separate humidity protection for F-socket
- higher signal strength thanks to a 0.1 dB noise factor
Technical specifications
General
Packaging type
Retail Box
Consumption Unit
1 pc. in cardboard box
Diameter Feedhorn
40
Color
grey, white
Markings
CE, WEEE
Device connections
max. subscriber
2 szt.
Output, contact material
gold-plated
Output, type
F female
Number of outputs
2 ports
Signal transmission
noise figure
0.1
Input frequency low band
10,70 - 11,70 GHz
Input frequency high band
11,70 - 12,75 GHz
Output frequency low band
950 - 1.950 MHz
Output frequency high band
1.100 - 2.150 MHz
Signal amplification Legacy
52 - 62 (typ. 57) dB
LOW frequency Low
9.75
Transmission modes
DVB-S, DVB-S2
LOW frequency High
10.6
Language Scope
Operation manual
en, de, fr, it, es, nl, da, se, pl, cz
packaging
de, en, fr, it
Downloads
Packing units:
1 / 30
Item: 67270
EAN: 4040849672705
