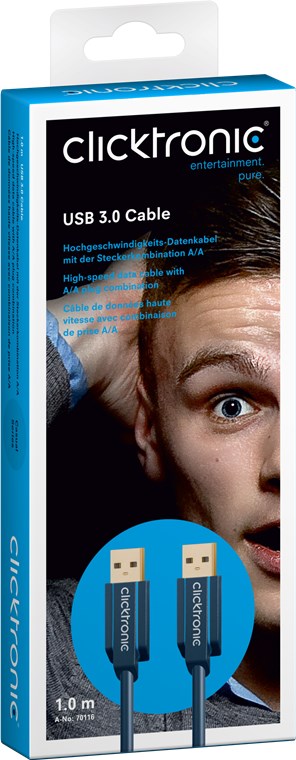

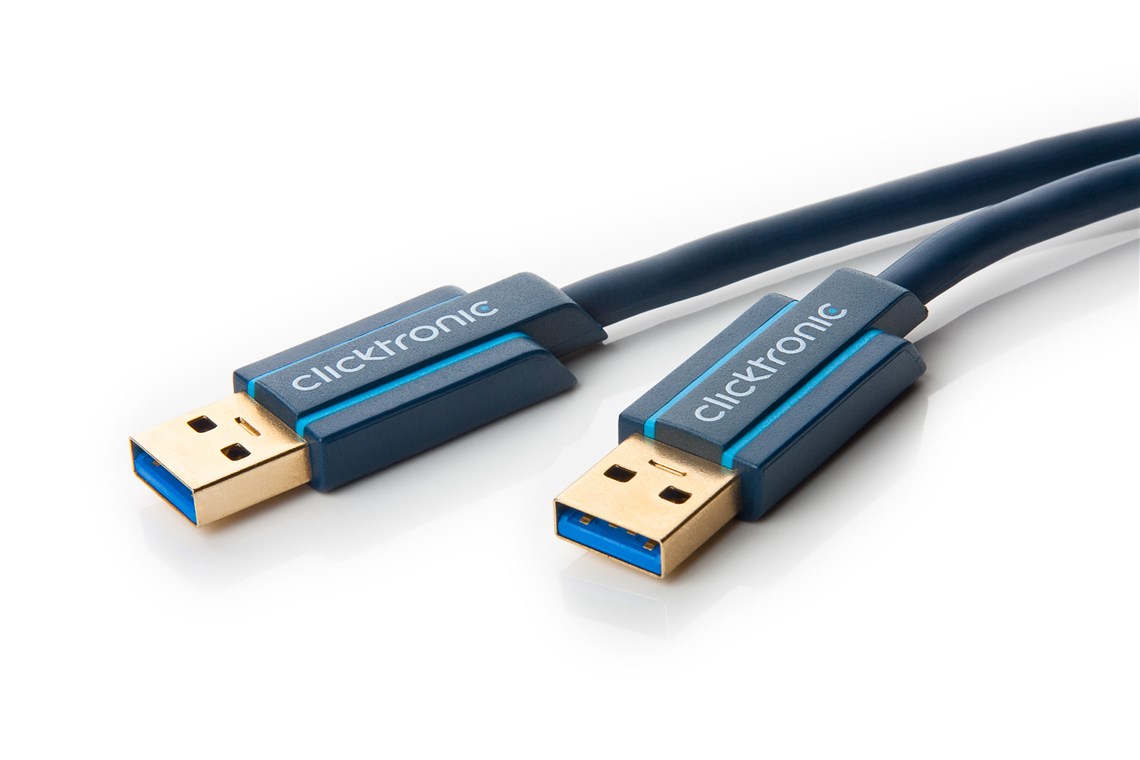

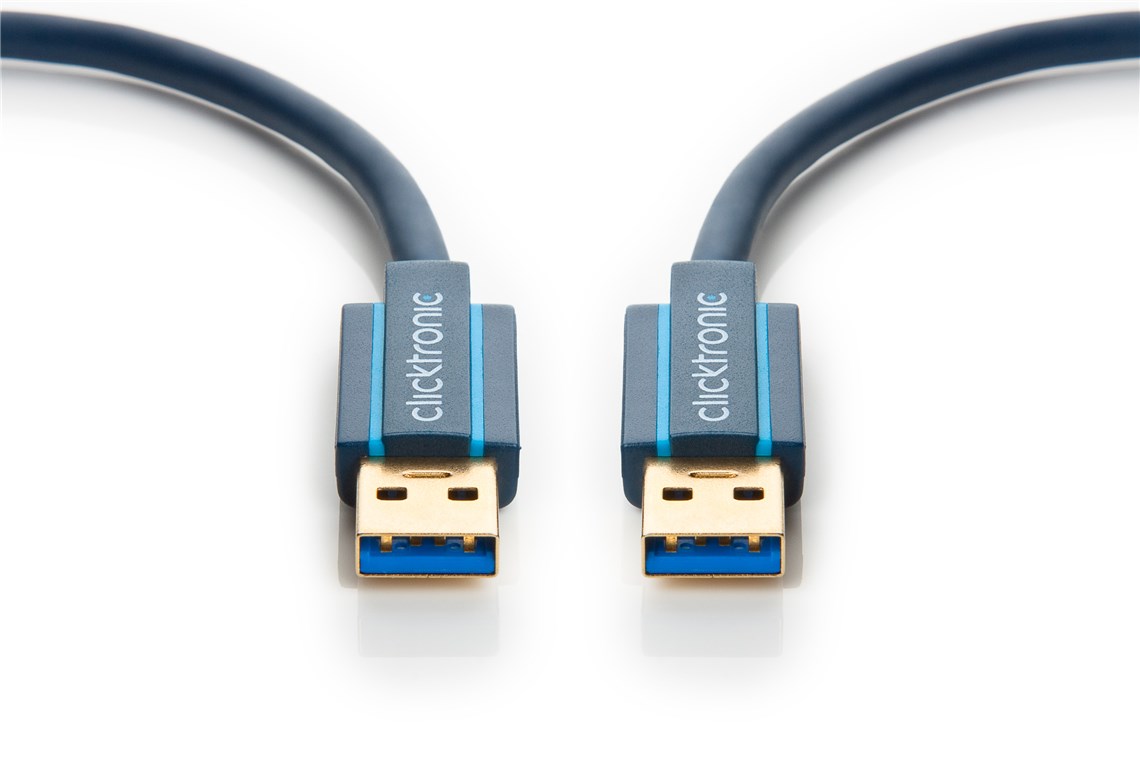

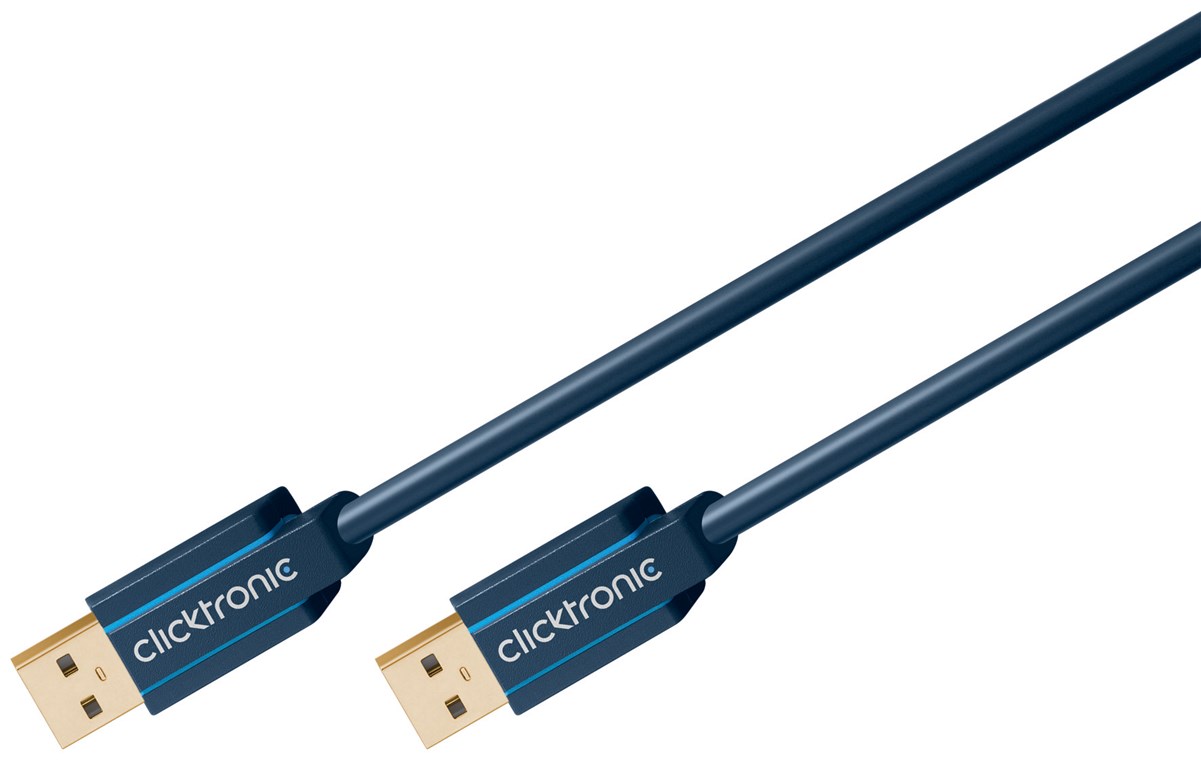

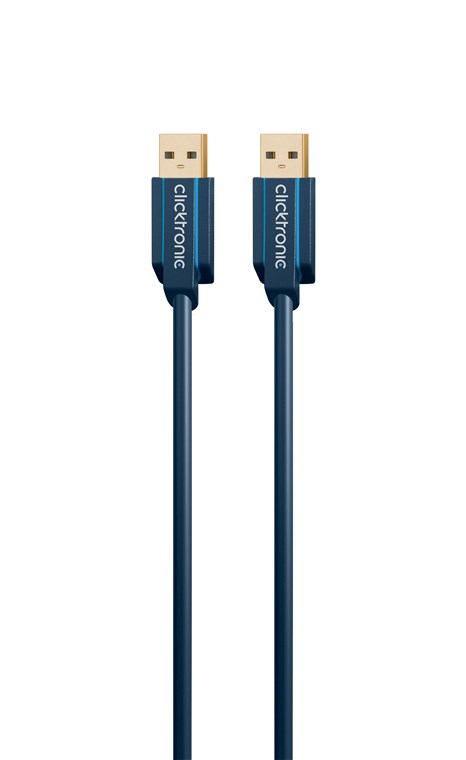

USB 3.0 cable
high-speed data cable with A/A plug combination
Casual
USB 3.0 cable
high-speed data cable with A/A plug combination
Article details
Now you can transmit data as rapidly as never before, from your mobile hard disks, NAS, home cinema streaming-box or other peripheral device. USB 3.0 permits transmission speeds of up to 5 Gigabits per second - 10 times as fast as its predecessor USB 2.0. That means it’s perfect for HD videos, photos or music. Its double signal shielding, pure materials and precise workmanship enable this cable to transmit your data perfectly and without distortion.
- suitable for many mass storage and peripheral devices like hard disks or HUBs
- SuperSpeed data transmission at up to 5 Gbit/s – 10 times faster than USB 2.0
- disturbance-free signal flow through pure copper conductor and double shielding
- 24 carat gold-plated contacts for minimum transmission resistance
Technical specifications
General
Packaging type
Retail Box
Consumption Unit
1 pc. in cardboard box
Operating temperature from
-10 °C
Operating temperature up to
80 °C
Warranty
10 years
Connections
Connection, shielding
yes
Connection, length
48 mm
Connection, width
15 mm
Connection, type
USB 3.0 male (type A)
Connection, height
7.5 mm
Connection 2, type
USB 3.0 male (type A)
Connection 2, length
48 mm
Connection 2, width
15 mm
Connection 2, height
7.5 mm
Connection, contact material
gold (24 kt)
Cable
Cable type
round cable
Cable length
1 m
Inner conductor material
OFC (99,9% oxygen-free copper)
AWG
29
Type 2, shielding
braid (copper) 112x
Cable sheath diameter (approx.)
5 mm
Inner Conductor number
7 pieces
inner conductor, core diameter
0.12
Kink protection
both sides
Signal transmission
max. transmission rate
5 Gbit/s
Downloads
Item: 70116
EAN: 4040849701160
